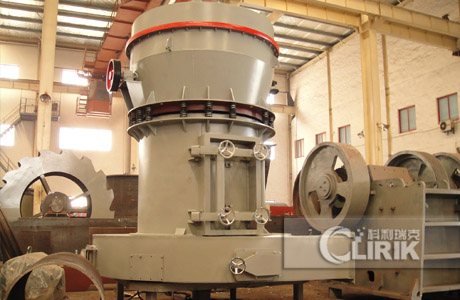

1.Introduce to YGM/MTM High Pressure Grinding Mill

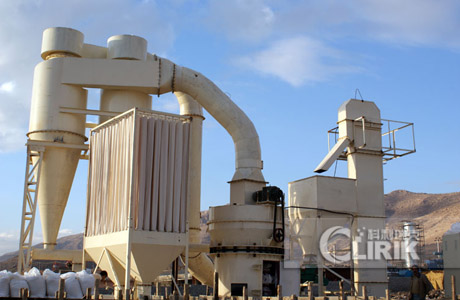

2.Grinding Mill Production Line Preview
3.Advantages of YGM/MTM series high pressure suspension grinding mill
4.Product Specification Parameter
Capacity:1~25 t/h
Max feeding size:40 mm
Finished powder:50~325 mesh

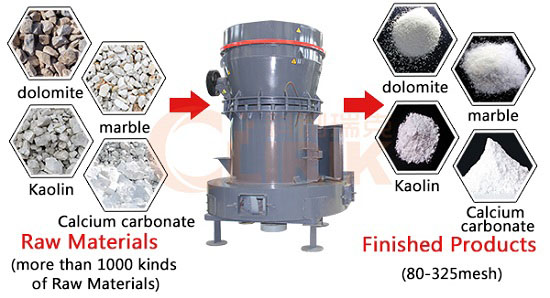

Range of application: Barite, calcite, potassium feldspar, talc, marble, limestone, dolomite, fluorite, lime, activated clay, activated carbon, bentonite, kaolin, cement, coal.etc
YGM/MTM high pressure suspension mill is suitable for processing all kinds of non-explosive mineral materials with Mohs hardness less than 6% and humidity less than 6%.
Widely used in metallurgy, construction, chemical industry, mining, highway construction and other fields, the finished powder particle size can be adjusted between 50 to 325 mesh (315-45 microns). Examples of processed materials include quartz, feldspar, barite, calcite carbonate, limestone, talc, ceramics, iron ore, silicon carbide, bauxite, phosphate rock, coal and other materials, a total of about 400 kinds of materials.
Greater production
YGM high pressure suspension mill is an upgraded version of the traditional Raymond mill, the production capacity is 20% higher than Raymond mill.wide
Wide application
YGM high pressure mill is widely used for grinding calcium carbonate, talc powder, gypsum, feldspar, barite, pyrophyllite, dolomite, kaolin, coke.etc
Small footprint, low labor costs
A set of YGM9517 high pressure suspension mill installation covers an area of 48 square meters, the height of 8 meters. The total production line requires 2-3 workers, one for raw material loading, one for operation and maintenance, and one for final packaging.
| Model | Roller | Ring | Feeding Size(mm) | Finished Size(mm) | Mill System Power(KW) | Capacity(t/h) | Overall Dimension(mm) | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Quantity(piece) | Diameter(mm) | Height(mm) | Inner Diameter(mm) | Height (mm) | ||||||
| YGM7815 | 3 | 260 | 150 | 780 | 150 | 15 | 0.613~0.033 | 35.7 | 1.0~3.0 | 4300*3500*5100 |
| YGM9517 | 4 | 310 | 170 | 950 | 170 | 25 | 0.613~0.033 | 72.65 | 2.1~5.6 | 7100*5900*7900 |
| YGM1280 | 3 | 370 | 240 | 1170 | 240 | 20 | 0.613~0.033 | 145.15 | 4.5~12.0 | 9300*5600*8200 |
| YGM1300 | 4 | 410 | 280 | 1270 | 280 | 20 | 0.613~0.033 | 202.15 | 6.5~16.0 | 9100*8200*8400 |
| YGM1620 | 4 | 450 | 300 | 1500 | 300 | 20 | 0.613~0.033 | 322.2 | 8.0~20.0 | 12500*5700*10500 |
| YGM1720 | 4 | 510 | 300 | 1720 | 300 | 35 | 0.613~0.033 | 450 | 10.5~28.0 | 11550*9500*10500 |
