1.Overview
2.Working principle and internal structure of ultrafine powder grinding mill

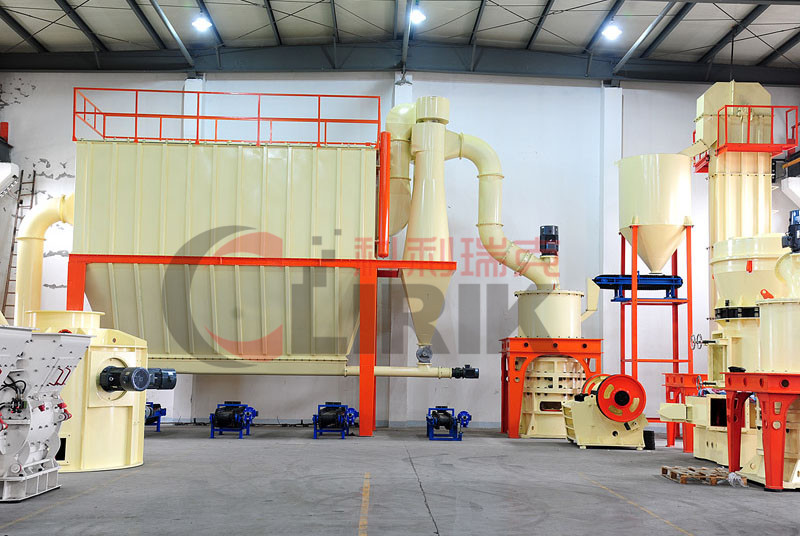

3.Ultrafine Powder Grinding Mill Production line
4.Advantages of Ultrafine powder grinding mill
5.Product Specification Parameter
Capacity:0.5-45t/h
Max feeding size:20 mm
Finished power size:325~3000 mesh
Range of application: Barite, quartz, feldspar, mica, calcite, talc, apatite, gypsum, fluorite, limestone, dolomite, diatomite, ceramic soil, clay, marble, granite, fly ash, kaolin, calcium carbonate, slag, bauxite, glass, etc.
The Ultrafine Powder Grinding Mill is a device that breaks solid materials into powder by grinding, and this crushing is an important unit operation in many processes. It is commonly used in metallurgy, building materials, chemical and mining industries.
The Ultrafine Powder Grinding Mill is suitable for ultra-fine grinding of various brittle materials with Mohs hardness below 7, such as calcium carbonate, barite, dolomite, calcite, limestone, kaolin, bentonite, marble, gypsum, quartz, feldspar, clay, talc, fluorite, white mud, mica, refractory, glass, a total of about 1000 kinds of materials.

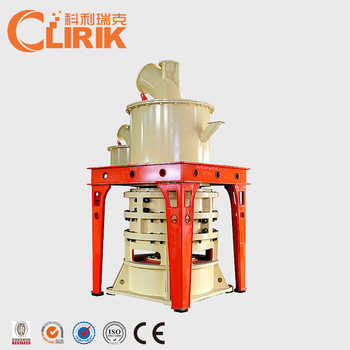

Ultrafine Powder Grinding Mill is mainly formed by mill body, blower fan, ultra-fine analyzer, finished product cyclone container, bag de-duster and air pipe. The elevator, storage bin, electric control cabinet, powder feeder and crusher are optional for the demands of customers.

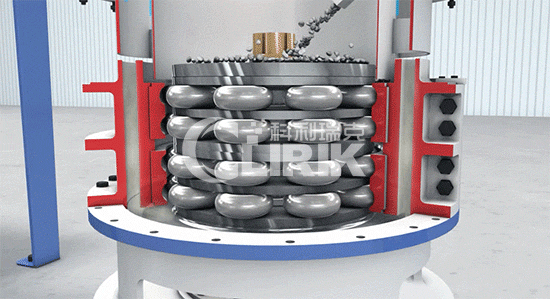

When the grinding mill is at work, the main bearing and each dial are driven by electromotor through reducer, and all the grinding rollers are rolling in the ring channels driving by dial through plunger. The materials are driven to the edge of the turn plate by the centrifugal force and fall down into the grinding chambers. The high-pressure air blower constantly inhales air, airflow with crushed materials are brought to classifier whose high-speed impeller will screen the airflow: The unqualified particle size will fall and return to the mill for being reground while the qualified particle size mixed with air will go into the cyclone powder collector. Most of the qualified powders will fall and exit from the discharging valve at the bottom; A small proportion of the fine powders, with airflow, moves to the dust cleaner. The materials from the above two lots are sent by the conveyor to get finished powders packed. In addition, filtered clean air will be emitted from muffler in the end.
1.The output is 40% higher than other mills.
2.Use high-strength wear-resistant materials, valid for 2~5 years。
3.Adjustable particle size:325-3000 mesh.
4.High security and reliability. The design of the mill is rigorous, so there is no screw loose damage to the machine.
5.Closed system, is an environmentally friendly green ideal equipment.
| Model | Ring Diameter(mm) | Ring Number(PCS) | Input Size(mm) | Output Size(mesh) | Capacity(t/h) | Outlet Size L*W*H(mm) | Main Motor Power(kw) |
|---|---|---|---|---|---|---|---|
| HGM80 | 800 | 3 | ≤10 | 150~3000 | 0.5~5.5 | 8605*4139*6050 | 75 |
| HGM80A | 800 | 3 | ≤10 | 150~3000 | 0.5~5.5 | 10454*3393*6626 | 75 |
| HGM90L | 900 | 4 | ≤10 | 150~3000 | 0.8~6.5 | 11735*3952*7525 | 55*2 |
| HGM100L-Ⅱ | 1000 | 4 | ≤15 | 150~3000 | 1.2~10 | 14507*3633*7562 | 135/75*2 |
| HGM100P | 1000 | 4 | ≤15 | 150~3000 | 1.2~11 | 14362*4200*7562 | 132/75*2 |
| HGM125L | 1250 | 4 | ≤20 | 150~3000 | 2.5~20 | 19261*4406*8591 | 185 |
| HGM1680L | 1680 | 4 | ≤20 | 150~3000 | 5~45 | 25067*5414*9007 | 315 |
